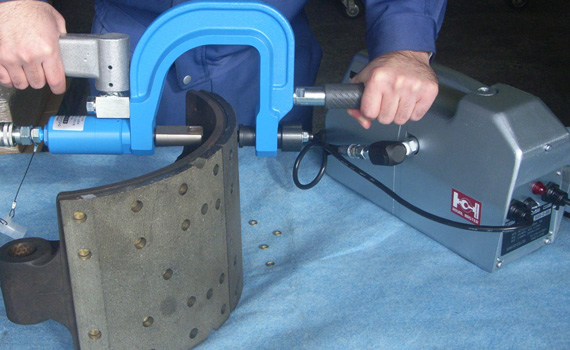

Lining Changer BS-2
|
- It is not necessary to lift a heavy shoe.
- You can easily pull out the old rivet quickly, by the original structure that we developed.
- You can easily exchange the lining for the medium-sized truck / the large-sized truck / the trailer.
- You can easily pull out and ram down a rivet by simple attachment exchange.
You can use it for a 6mm rivet, 8mm rivets. (as for the part for 8mm rivets, optional)
- This is superior in operability and work characteristics.
- Certain lining exchange can be realized by security.
- The pump(
SGS-2-Bs) is superior in portability.
|
|
|
BS-2
|
|
BS-2 Specification
|
|
Model
|
BS-2
|
|
Pressurization
power
|
20kN
|
|
(2TON)
|
|
Stroke
|
30mm
|
|
Depth
|
115mm
|
|
Opening width
|
120mm
|
|
Weight
|
5.2kg
|
|
|
|
Hydraulic Pomp Specification
|
|
Model
|
SGS-2-Bs
|
|
Motor
|
AC220V 0.3kw
|
|
S.Phase
|
|
Pressure
|
25MPa
|
|
Discharge rate
|
300cc/min
|
|
Weight
|
13kg
|
|
|

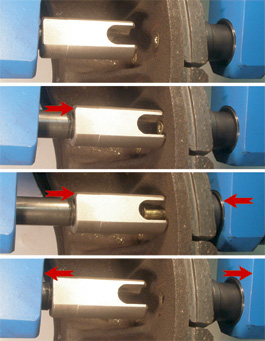

Rivet pulling out
|
We use a punching set of the original structure comprising the following characteristics.
- Punching usually comes than the rivet head adversely.
- Punching comes in the rivet head and a right angle with a lining hole as a guide.
- No effect of a core gap and the degree of leaning of the rivet.。
- No damage the shoe hole.
- By simple operation, You can pull out one of them in approximately two seconds.
|

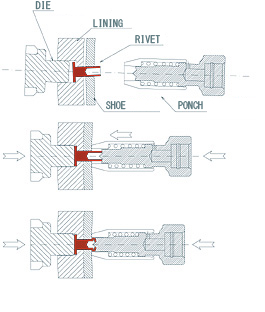

Rivet ramming down
- Ready a rivet ramming down
Change an attachment of BS-2 for a ponch and a die, and insert a rivet in a shoe and lining.
- Operation start
Put a die in the lining hole. Push the trigger switch and guide a ponch hole to the rivet tip.
- Coherence of a shoe and the lining
The rivet head adhere a lining and a shoe before a rivet ramming down by a ponch of a built-in spring.
- Certain a rivet ramming down.
The rivet is kept to a shoe perpendicularly and stakes it to a barrel-shape with coherence being in a state.
|
|
|
|
|
